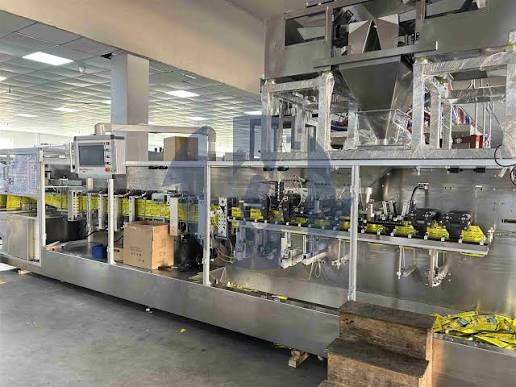

In the world of automated packaging, the Horizontal Form Fill Seal (HFFS) machine stands as a testament to engineering ingenuity and adaptability. Often referred to as a “flow wrapper,” this machine is a cornerstone of modern production lines, known for its ability to create a diverse range of packages at high speeds. It seamlessly integrates forming, filling, and sealing into one continuous, horizontal process—a fundamental departure from its vertical counterpart.
How an HFFS Machine Works
The journey of a product through an HFFS machine is a marvel of automation, a precisely choreographed sequence that can be broken down into several key stages.
Film Unwind and Forming: The process begins with a roll of packaging film that is unwound and fed into the machine. The film is then shaped around a forming collar or shoe. This process transforms the flat film into a continuous tube around the product. Depending on the machine, the film can be folded to create a bottom seal or shaped around the product itself.
Product Infeed and Filling: As the film forms a tube, the product is introduced. In many configurations, an infeed conveyor delivers the product directly into the path of the film, where it is carried forward by the moving web. This is a critical distinction from vertical machines, which rely on gravity for product flow. HFFS machines are ideal for products that require precise orientation, such as individually wrapped candies, bars, or items placed on trays.
Sealing: Once the product is enveloped in the film tube, the sealing process begins. There are two types of seals:
- Longitudinal Seal: This is a fin seal that runs along the length of the package, created by sealing the overlapping edges of the film together. Heated wheels or bars often form this seal as the film is pulled through the machine.
- Transverse Seals: These are the end seals that create the individual packages. The sealing jaws close on the film between products, creating the top seal of one package and the bottom seal of the next, before a cutting mechanism separates them. These jaws can be rotary, for high-speed operation, or reciprocating, which travel with the film to allow for a longer sealing time and stronger seals.
Cutting and Discharge: After sealing, a cutting system separates the individual packages from the continuous film. The finished, sealed packages are then discharged from the machine, ready for secondary packaging or distribution.
Versatility Across Package Styles and Industries
One of the most powerful attributes of HFFS machines is their incredible versatility. They are capable of producing a wide array of package styles suitable for countless industries.
Flow Wraps and Pillow Packs
The most common style produced by HFFS machines is the pillow pack or flow wrap. These are packages sealed on all four sides, creating a secure, pillow-like shape. They are a cost-effective and versatile option for a vast range of products, including baked goods, candy, and fresh produce.
Sachets
Small, single-use packages like those for condiments, instant coffee, or shampoo are often produced on HFFS machines. These are commonly created as three or four-sided seal pouches, providing a secure and easy-to-open format.
Stand-Up Pouches (Doypacks)
HFFS machines are masters of creating stand-up pouches. The film is folded to form a bottom gusset that allows the package to stand upright on the shelf. This popular format offers excellent brand presence and is widely used for products like juices, sauces, pet food, and laundry pods. Features like zipper reclosures are often integrated directly into the HFFS process.
Stick Packs
For products like powdered drink mixes or pharmaceutical powders, HFFS machines can produce long, narrow “stick packs.” These are produced at very high speeds and are perfectly portioned for single servings.
HFFS machines are used across a diverse range of industries, including:
- Food and Beverage: For everything from snacks and confectionery to dairy, sauces, and ready-to-eat meals
- Pharmaceuticals: To package pills, tablets, powders, and medical devices in secure, sterile pouches
- Personal Care: For single-serving items like shampoo, lotion, and cream samples
- Industrial and Hardware: To wrap items like metal extrusions, tubes, and pipes, as well as smaller hardware components
Key Applications and Examples
High-Speed Flow Wrapping
The demand for speed is a constant in modern manufacturing. Take the Syntegon Pack 103, an entry-level HFFS flow wrapper that can achieve speeds of up to 175 packages per minute. It is a compact, flexible solution perfectly suited for small to mid-sized businesses taking their first step into packaging automation. It’s designed for ease of operation, allowing quick changeovers between products and supporting a wide range of films, including sustainable mono-materials.
Advanced Pouch Making
For more complex pouch formats, the Bartelt MAG-B represents the cutting edge. This machine uses magnetic linear track technology to produce high-quality pouches at speeds of up to 150 pouches per minute. Its patented “dual-side” process allows pouches to be formed, filled, and sealed on both the front and back of the machine, drastically reducing the machine’s footprint. It can handle a wide variety of pouch types, from standard roll stock to stand-up gusset pouches (DOY packs), making it a highly flexible solution for industries like pet care and household goods.
Horizontal vs. Vertical FFS: A Key Distinction
Choosing between an HFFS and a VFFS machine is a common decision in the packaging world. The primary difference lies in the product flow and, consequently, the type of product each is best suited for.
HFFS machines are ideal for products that need to be oriented or are fragile. Consider a tray of cookies; they will travel perfectly flat through an HFFS machine, maintaining their position and presentation. A VFFS machine would not be able to handle this product without breaking the cookies.
On the other hand, VFFS machines excel with free-flowing products that can drop by gravity into the bag. Items like loose granola, candy pieces, or frozen vegetables are a natural fit for a VFFS machine, as the vertical drop is fast and efficient for this product type.
Key Advantages of HFFS Machines
Gentle Product Handling
The horizontal orientation means products are conveyed gently through the machine. This is crucial for fragile items like biscuits, crackers, or baked goods that would break if dropped vertically.
Precise Product Placement
HFFS machines allow for exact positioning of products within the package. This is essential for items that require specific orientation, such as medical devices, pharmaceutical blister packs, or multi-component products.
Versatile Package Formats
From simple pillow packs to sophisticated stand-up pouches with zippers, HFFS machines can produce virtually any package format. This flexibility makes them invaluable for manufacturers with diverse product lines.
High-Speed Capability
Modern HFFS machines can achieve remarkable speeds, with some models exceeding 200 packages per minute. This throughput makes them ideal for high-volume production environments.
Integration with Existing Lines
HFFS machines can be easily integrated with upstream equipment like filling systems and downstream equipment like cartoners and case packers, creating a seamless production line.
Considerations When Choosing an HFFS Machine
Product Characteristics
The nature of your product—size, shape, fragility, and orientation requirements—will heavily influence your choice. Products that require specific positioning demand HFFS technology.
Speed Requirements
High-volume operations may require machines capable of 200 packages per minute or more. Lower-volume operations can opt for more affordable, slower systems.
Package Formats
Consider the types of packages you need to produce. Do you need pillow packs, sachets, stand-up pouches, or stick packs? Ensure the machine can handle your required formats.
Film Compatibility
The machine must handle your chosen films—whether standard laminates, sustainable mono-materials, or biodegradable options—without wrinkles, breaks, or sealing failures.
Budget and ROI
While HFFS machines represent a significant investment, the savings in labor, materials, and reduced waste often justify the cost. Consider the total cost of ownership, including maintenance and consumables.
Technical Support
Choose a supplier with a strong reputation for quality, reliability, and after-sales support. Consider availability of parts, technical training, and service response time.
The Bottom Line
The Horizontal Form Fill Seal machine is a dynamic and essential tool in the packaging industry. Its ability to create a diverse range of package styles—from simple pillow packs to advanced stand-up pouches—at high speeds, while handling delicate products that require orientation, makes it a cornerstone of efficiency.
As technology continues to advance, with innovations in magnetic drive systems and sustainable material compatibility, the HFFS remains at the forefront of packaging innovation. For businesses looking to automate, scale up, and diversify their packaging capabilities, the HFFS machine represents a versatile and powerful partner.
