Introduction
In the high-stakes realms of advanced equipment and industrial robotics, gears are the linchpin of power transmission. Their performance directly dictates the ultimate precision, efficiency, and reliability of the entire machine. A pervasive industry challenge, however, is the premature degradation of gears under sustained high loads, leading to loss of accuracy, excessive operational noise, and untimely failure. This results in costly unplanned downtime and damage to brand reputation.
The root cause often lies not in a single process, but in the traditional, siloed approach to manufacturing. The sequential, disjointed nature of material selection, machining, and heat treatment creates a cascade where optimizations in one stage are undone in the next, resulting in accumulated errors that compromise long-term performance.
This article explores an integrated methodology for gear manufacturing. It advocates for a systemic, collaborative approach that unites material science, processing, and inspection from the very beginning of the design phase. The goal is to achieve fundamental improvements in the longevity and consistency of gears through holistic optimization, not just localized fixes.
Why is Scientific Material Selection the Foundational Step for Successful Precision Gear Manufacturing?
Selecting a material based solely on its highest performance rating is a common and costly mistake. The true art lies in the precise alignment of material properties with specific application demands. This scientific selection process is the critical first step in controlling both cost and long-term reliability, setting the stage for all subsequent precision gear manufacturingprocesses.
The logic for choosing specific gear materials varies dramatically with operating conditions. For high-load, high-cycle applications like wind turbine gearboxes, alloy steels such as AISI 8620 or 9310 are preferred for their excellent strength and core toughness. Their specific alloying elements are chosen to respond predictably to carburizing or nitriding heat treatments, ensuring a hard, wear-resistant surface over a tough core. For high-speed scenarios, such as in aerospace auxiliary power units, the focus shifts to materials that can withstand centrifugal forces and thermal stress, often requiring specialized grades with fine-grained structures. In corrosive environments found in food processing or marine applications, stainless steels or engineered plastics like PEEK or UHMW become necessary, though their selection requires careful analysis of load-bearing capacity and thermal limits.
The chosen material’s inherent characteristics—its hardenability, machinability, and dimensional stability during heat treatment—directly dictate the parameters and success of downstream processes. Selecting an overly exotic or mismatched material can exponentially increase manufacturing complexity and cost without yielding tangible benefits, making scientific selection the first and most crucial gatekeeper for a viable, reliable gear.
In the Gear Cutting Process, How to Balance Efficiency, Cost, and Ultimate Precision?
Foundational Gear Cutting Methods

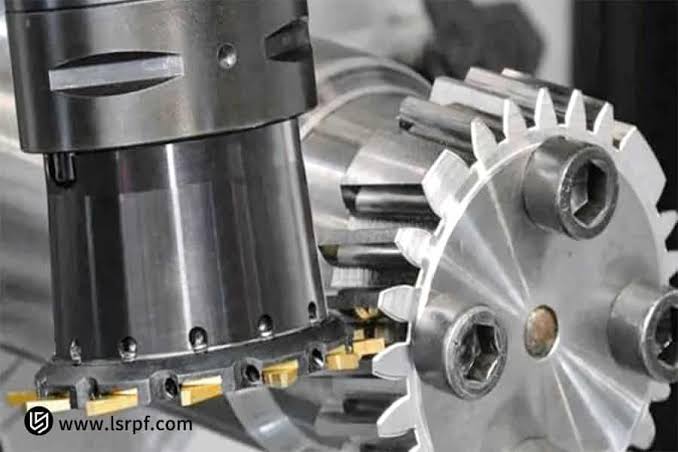

The gear cutting processencompasses primary methods like hobbing, shaping, and grinding, each serving a distinct role. Hobbing offers high efficiency for volume production, shaping is essential for internal gears, and grinding delivers the supreme accuracy required for the most demanding precision gear manufacturingapplications, defining the core precision-cost spectrum.
Strategic Optimization for Performance and Economy
- Compound Machining Strategies
The optimal approach often involves multi-stage strategies. A prime example is combining high-speed hobbing with shaving. Hobbing creates a near-net-shape part quickly, and shaving then refines it for excellent finish and noise reduction at a fraction of grinding’s cost, perfectly balancing performance and expenditure.
- Geometry-Driven Process Selection
The strategy must align with gear geometry. Producing spiral bevel or herringbone gears requires specialized, dedicated machinery. Success depends on selecting the precise method tailored to the specific types of gears being manufactured.
Beyond Machining: How Does Full-Process Quality Control Safeguard Gear Reliability?
In precision gear manufacturing, quality control functions as an integrated navigation system, not a final checkpoint. A robust, closed-loop protocol—spanning First-Article Inspection, in-process audits, and final confirmation—ensures continuous oversight.
The system’s predictive power comes from Statistical Process Control (SPC). By monitoring key gear manufacturing servicesvariables in real-time, SPC charts detect process drift before non-conformance occurs, guaranteeing exceptional batch consistency. This data-driven, preventive approach is mandated by standards like IATF 16949 or AS9100. It transforms quality from a mere inspection into an engineered, intrinsic characteristic of the entire manufacturing process, safeguarding reliability for mission-critical applications.
Facing Cost Pressure, What Are the Advanced Strategies for Optimizing Gear Manufacturing Costs?
True cost optimization in gear manufacturing is an exercise in value engineering, not simply price reduction. It involves scrutinizing the entire system to eliminate waste and enhance efficiency without compromising the core performance attributes. Advanced strategies operate on multiple fronts. One key area is the intelligent optimization of process combinations, as previously discussed, where the strategic use of pre-finishing operations can drastically reduce the need for expensive final grinding.
Another lever is production planning based on annual demand analysis. Consolidating orders into optimally sized batches can minimize machine setup times and material changeovers, significantly boosting overall equipment effectiveness (OEE). Perhaps the most impactful strategy originates at the very beginning: near-net-shape forging of blanks. By designing and producing a forged blank that is much closer to the final gear’s dimensions, material utilization skyrockets, metal-cutting time plummets, and tool wear is reduced.
This Design for Manufacturability approach, starting with the raw blank, often yields the single largest saving in both material cost and machining time. Implementing these sophisticated strategies requires deep process knowledge and the operational scale to manage complex production schedules effectively. This capability to deliver custom manufacturing solutions that are both high-performing and cost-competitive is what defines a truly strategic manufacturing partner, moving the conversation from unit price to total life-cycle value.
Future Trends: Which Technological Innovations Are Reshaping Precision Gear Manufacturing?
The future of precision gear manufacturing is being forged at the intersection of digital and physical technologies, driving the industry toward unprecedented levels of intelligence, accuracy, and flexibility.
The Digital Backbone: Simulation and Data Integration
At the core of the next generation in precision gear manufacturing is the digital twin—a virtual, physics-based replica of the entire production process. This model, encompassing everything from gear cutting process simulation to heat treatment distortion, allows engineers to predict outcomes, optimize parameters, and eliminate physical trial-and-error before any metal is cut, ensuring a right-first-time approach.
Frontiers in Physical Production and Design
- Adaptive Smart Machining
On the physical shop floor, adaptive machining systems fused with in-line metrology are key. Using real-time sensor data, they automatically compensate for tool wear or thermal drift during machining. This ensures exceptional consistency from the first part to the last, guaranteeing ultimate precision.
- The Additive Manufacturing Revolution
Additive manufacturing (3D printing) unlocks unprecedented design freedom. It enables complex, lightweight internal structures or integrated gear assemblies impossible to achieve with traditional subtractive methods. This paradigm shift is pivotal for creating the next generation of high-performance precision CNC gear components.
Conclusion
Achieving excellence in precision gear manufacturing is a systemic engineering endeavor. Its core lies in dismantling the traditional silos between material science, cutting processes, heat treatment, and quality control, fostering true synergy across the entire chain from design to delivery. It is through scientific material selection, integrated process pathways, and data-driven, closed-loop control that the latent potential of a gear design is transformed into the durable, quiet, and efficient transmission performance within a machine. This systemic capability is what builds a decisive competitive advantage for the end product.
If you are seeking a gear manufacturing solution that delivers an optimal balance of high precision, extended service life, and compelling cost-effectiveness for your project, we encourage you to connect with our expert team. LS Manufacturing offers comprehensive feasibility analysis and tailored optimization advice for your specific application requirements.
Author Bio
The author is a senior expert in the field of precision manufacturing with over fifteen years of experience in gear design and process planning. Specializing in providing reliability solutions for transmission systems in industrial automation and high-end equipment sectors.
FAQs
Q1: What is the main difference between precision gear manufacturing and traditional gear manufacturing?
A1:The key difference is systemic integration versus isolated steps. Precision gear manufacturing emphasizes full-process synergy and a data-driven closed loop across materials, processes, and inspection. It pursues ISO 5-8 level accuracy, minimal noise, and service life exceeding tens of thousands of hours, rather than merely completing machining operations in sequence.
Q2: How do I choose the most suitable type of gear for my application?
A2:The choice requires a holistic consideration of transmission efficiency, spatial layout, load, and speed. For instance, helical gears offer over 98% efficiency and smooth operation, making them ideal for high-speed, high-load scenarios. Worm gear sets provide high single-stage reduction ratios but with lower efficiency, suiting applications where large speed reduction is needed in a non-critical power path.
Q3: What are the common failure modes in gears, and how can they be prevented?
A3:Common failures include pitting, tooth breakage, and scoring (adhesive wear). Prevention requires a systemic approach: proper material selection and heat treatment prevent pitting; optimizing root fillet design avoids stress concentrations to prevent breakage; and using extreme-pressure lubricants with specialized surface treatments helps prevent scoring.
Q4: How to balance cost and performance in a gear manufacturing project?
A4:Balance is achieved through value engineering for systemic optimization. For example, under performance constraints, a combination of high-speed hobbing and shaving can replace full grinding. Alternatively, adopting near-net-shape blank designs dramatically improves material yield. These strategies ensure core performance is maintained while effectively controlling overall cost.
Q5: What is the typical lead time for a gear manufacturing project from design to delivery?
A5:Lead time depends on part complexity and order quantity. For a standard precision gear project, the typical timeframe is 2 to 4 weeks. Professional manufacturers often provide rapid-turnaround channels for R&D prototypes or urgent small batches to accommodate tight development timelines.
